Small House Electrical Plan​ || Complete 30 Sqm Guide for the Philippines

Small House Electrical Plan is most important for a small phippino house and often overlooked aspect of building a home in the Philippines. Many Filipino homeowners focus only on the architecture and interior, leaving electrical planning for later. This is a big mistake.

A poorly planned electrical system is not only inconvenient but also dangerous. Electrical fires are a major cause of house fires in the Philippines. According to records from MERALCO and the Bureau of Fire Protection, improper wiring and overloaded circuits cause thousands of residential fires in the Philippines every year. In this guide, we will cover in detail a complete, safe, and PEC 2017 compliant electrical plan for a 30 sqm 1 bedroom house.

Philippines Electrical Standards

Residential electrical work in the Philippines is regulated under the Philippine Electrical Code (PEC) 2017. This code is based on the National Electrical Code (NEC) of the USA but modified to account for the specific conditions of the Philippines.

Following this code isn't just a legal requirement; it's essential for the safety of you and your family. It's important to know some basic standards that every Philippines residential project must follow.

The first standard voltage is The standard residential voltage in the Philippines is 220 volts alternating current at 60 Hertz frequency, This is different from the USA which has a 120V/240V split system.

The Philippines' 220V system can run many appliances directly without a step down transformer. Another standard is about wire gauges Wire size in the Philippines is based on Amperes.

2.0mm² wire (approximately 15 amperes capacity) is standard for lighting circuits. 3.5mm² wire (approximately 20 amperes capacity) is standard for power outlet circuits. 3.5mm² wire is required in circuits dedicated to AC units and high load appliances.

8mm² or more is the third standard conduit for main service entrance cable. In the Philippines, PVC conduit pipes are mandatory for wiring protection, especially for concealed wiring that goes inside walls.

Exposed conduit uses rigid metal conduit or FMC (flexible metallic conduit). Select conduit diameter based on the size of the wire bundle 1/2 inch conduit for 3 4 wires, 3/4 inch conduit for larger bundles.

Regarding Electrical Permits, it should be understood that in the Philippines, it is mandatory to obtain an electrical permit for residential electrical work through the building permit process.

Electrical plans must be signed by a licensed Professional Electrical Engineer (PEE) or Registered Electrical Engineer (REE). MERALCO service connections also require electrical inspection clearance.

Small House Electrical Plan​ Complete Breakdown

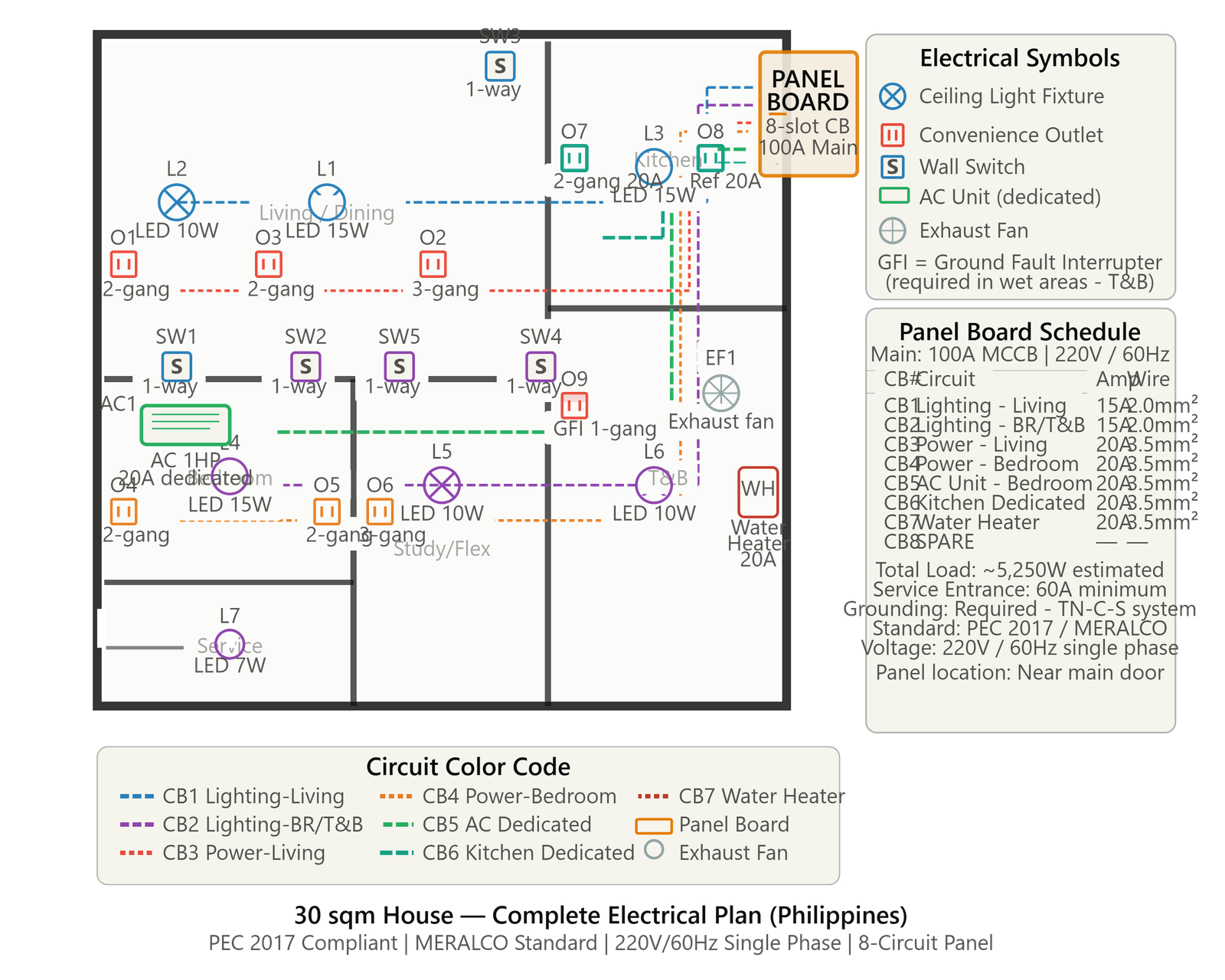

Now let's talk about the actual small house electrical plan in full detail, in this plan I have suggested some things and also given important tips about some things.

If you feel that what I have written is wrong then you can tell me, the truth is that the price of ingredients can vary from place to place.

With so many years of experience, I can tell you that the plan I have given is 99% correct and you cannot deny this, so go ahead and read the information given below carefully and prepare a perfect small house electrical plan.

Panel Board / Main Distribution Board

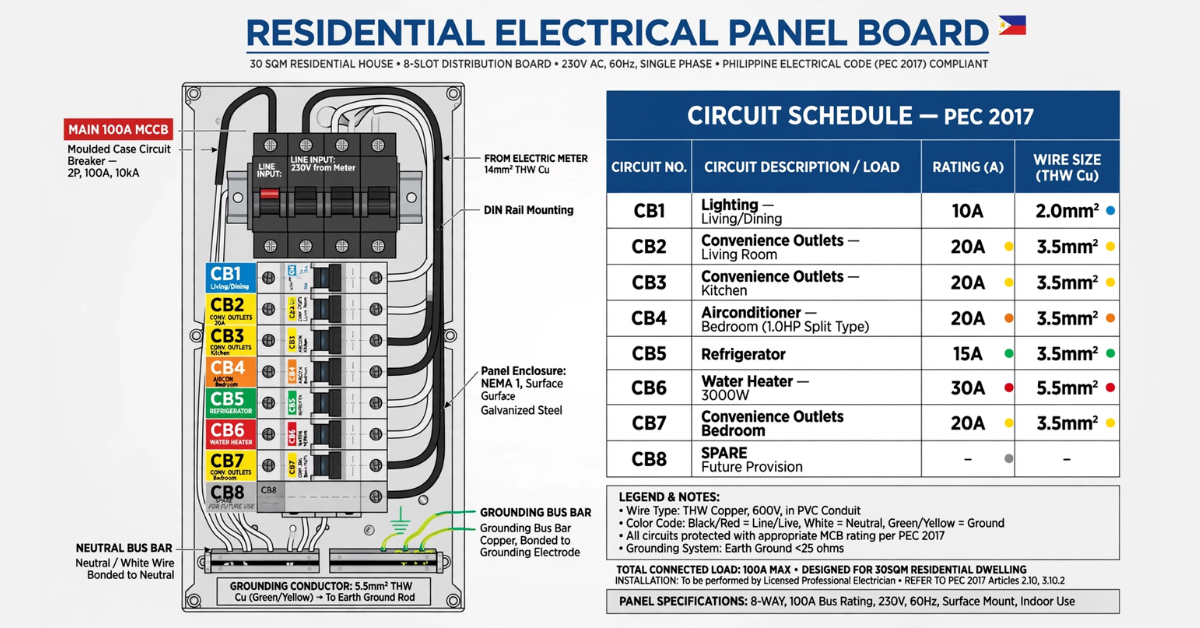

An 8 slot circuit breaker panel board has been installed for this 30 sqm house. The location of the panel board is near the main door which is standard practice.

The panel location near the main door is convenient for access and the service entrance wiring is also shorter. The main circuit breaker is a 100 Ampere MCCB (Molded Case Circuit Breaker).

This may seem overkill for a 30 sqm house, but it is ready for future expansion. The main MCCB provides sufficient headroom if solar panels, an EV charger, or additional appliances are to be added in the future.

Individual branch circuit breakers 15A or 20A ratings depending on circuit load Panel board type is an important decision. In the Philippines, popular brands are Schneider Electric, ABB, Eaton, and local brand Omni.

A good quality 8 slot panel board costs between 2,500 and 6,000 pesos in the Philippines. Don't buy cheap panel boards; this is a safety critical component, and compromising quality is dangerous.

Panel board mounting height is standard 5 ft (1.52 m) to 6 ft (1.83 m) from the floor to the top of the panel. This height provides comfortable access for an adult. The Philippine Electrical Code requires a minimum of 3 ft (0.91 m) of clear space in front of the panel.

Circuit 1 Lighting Circuit (CB1 15A)   Living Room and Dining Area

The first circuit is dedicated to lighting the living room and dining area. This circuit has two ceiling light fixtures, L1 and L2. L1 is a 15W LED recessed downlight that serves as the living room's main light, and L2 is a 10W LED accent light.

The total connected load on this circuit is approximately 25W, which is very comfortable for a 15A breaker. The circuit breaker should never run at more than 80 percent load.

LED lights are strongly recommended in the Philippines because electricity rates are very high. MERALCO's average residential rate is approximately 11 pesos to 12 pesos per kWh in 2025, one of the most expensive electricity rates in Asia.

LED lights use 75 to 80 percent less electricity than incandescent lights for the same brightness. The SW1 switch is for the living room and dining lights, mounted on the wall near the main door approximately 4 ft (1.22 m) from the floor. According to the Philippines building code, 4 ft (1.22 m) is the standard switch height.

Circuit 2 Lighting Circuit (CB2 15A)   Bedroom, Study, T&B and Service Area

The second lighting circuit is for private areas bedroom L4, study/flex room L5, toilet and bath L6, and service area L7. The total connected load is approximately 42W, which is comfortable for a 15A circuit.

A moisture resistant light fixture with an IP44 rating should be used in a T&B because bathrooms are prone to humidity and water splashes. Regular ceiling fixtures are dangerous in bathrooms.

IP rated bathroom fixtures in the Philippines are available for 600 pesos to 2,000 pesos SW2 is the bedroom switch which is installed on the wall near the bedroom door.

SW4 is the bathroom switch, located in the hall outside the bathroom door (it's standard practice to have bathroom switches outside). SW5 is the study room switch, and SW3 is the kitchen switch.

Circuit 3 Power Outlets Living Room (CB3 20A)

The third circuit is for the living room's general purpose power outlets. This circuit has three outlets O1 is a 2 gang outlet on the left wall near the sofa, O2 is a 3 gang outlet on the TV wall (for TV, soundbar, streaming device), and O3 is a 2 gang outlet in the dining area.

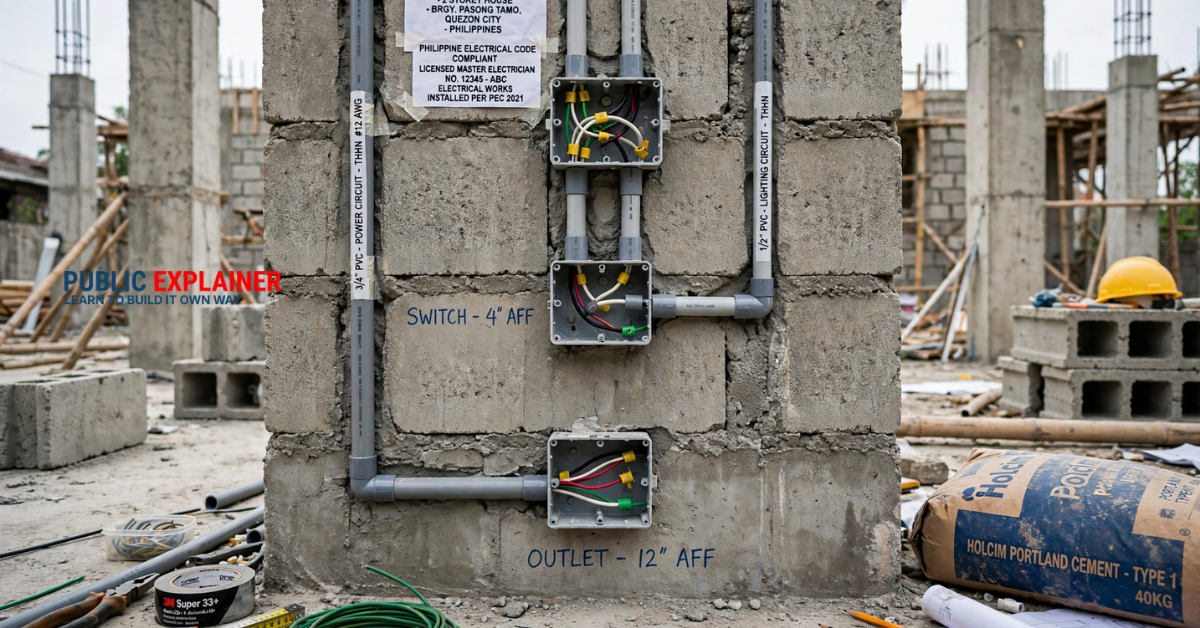

The standard outlet height in the Philippines is 12 inches (30.5 cm) from the floor for general purpose outlets. The TV wall outlet should be behind the TV, which is usually mounted at a height of 48 inches (122 cm).

An important tip Plan your living room outlets for the future. Many homes in the Philippines end up with a mess of extension cords because outlets aren't planned in advance. A living room should have a minimum of four outlets for comfortable use.

Circuit 4 Power Outlets Bedroom and Study (CB4 20A)

The fourth circuit is for the bedroom and study room power outlets. This circuit includes O4, a 2 gang outlet on the left side of the bed, O5, a 2 gang outlet on the right side of the bed, and O6, a 3 gang outlet on the study desk.

Always install bedside outlets on both sides for chargers, lamps, and other bedside devices. A study desk outlet should have sufficient sockets for a computer, monitor, printer, and chargers.

Outlets with USB charging ports are becoming very popular for bedroom outlets in the Philippines. These outlets mount on the wall and can charge a phone directly from USB without an adapter. They are available for 400 to 1,200 pesos at online stores and electrical shops in the Philippines.

Circuit 5 AC Unit Dedicated Circuit Bedroom (CB5 20A)

The fifth circuit is dedicated to the bedroom's air conditioning unit. This circuit is for the AC only; no other appliances will be connected to this circuit. This is a mandatory requirement for AC units in the Philippines.

AC units draw high inrush current on startup which affects other devices and may even trip the circuit breaker if there is a shared circuit. For a bedroom, a 1.0 HP split type AC is recommended, which consumes approximately 900W to 1,000W in continuous operation.

A 20A circuit breaker is appropriate for this load, the dedicated AC outlet should be 20A rated, which looks different from standard 15A outlets. The 20A outlet has a T shaped pin slot. The wiring for the outdoor AC unit also runs through this same circuit to the outdoor compressor.

The outdoor unit is generally installed on the roof or side wall in the Philippines and the refrigerant pipes and electrical cables from the indoor unit pass through a sleeve inside the wall.

Circuit 6 Kitchen Dedicated Circuit (CB6 20A)

The fourth circuit is for high load appliances of the kitchen like refrigerator, microwave oven, rice cooker, and other kitchen appliances. O7 is a 2 gang 20A outlet on the kitchen counter for small appliances and O8 is a refrigerator dedicated outlet.

Having a dedicated circuit in the kitchen is very important because a rice cooker alone consumes 700W to 1,100W. A microwave oven consumes 800W to 1,500W. A refrigerator consumes 100W to 200W continuously.

Running all of these together on a shared 15A circuit would trip the circuit; a dedicated 20A circuit solves this problem. The rice cooker is a mandatory appliance in the Philippines; it is used daily in practically every Filipino kitchen, so its load must be considered in kitchen circuit planning.

Circuit 7 Water Heater Dedicated Circuit (CB7 20A)

The seventh circuit is for the instant water heater installed in the bathroom. Instant electric water heaters are very popular in the Philippines. They are different from the tank type, provide instant hot water, and do not waste standby energy.

Instant water heaters consume 3,500W to 5,500W, which requires a dedicated 20A circuit. It is also mandatory to install a ground fault interrupter (GFI) outlet in the T&B. O9 is the GFI outlet of the T&B.

The GFI outlet automatically disconnects the circuit if a ground fault is detected. This provides protection against electrocution in bathrooms where water and electricity are present simultaneously. This is a code requirement in the Philippines and a life saving feature.

Exhaust fan EF1 is installed in T&B. Exhaust fans are essential for bathroom humidity control, especially in the humid climate of the Philippines. The exhaust fan can be powered from the same CB2 lighting circuit or on a separate dedicated circuit.

Circuit 8 Spare (Future Expansion)

The 8th slot is kept spare for future expansion. As homes in the Philippines expand, an additional AC, solar panel inverter connection, EV car charger, or any other high load appliance may be added in the future. Keeping a spare circuit breaker slot in advance is a very practical decision.

Grounding System Very Important

In the Philippines, residential grounding system TN C S (Terra Neutral Combined then Separated) type is standard. A grounding electrode steel rod from each panel board, which is driven into the ground approximately 8 ft (2.44 m) deep, should be connected with a copper grounding conductor.

Proper grounding is the most important safety feature for any electrical system. In the event of a lightning strike, equipment fault, or insulation failure, proper grounding safely dissipates dangerous current to the earth without shocking occupants. Lightning strikes are common in the Philippines, so proper grounding protection is essential.

MERALCO Service Connection Process

This is the process to follow for a MERALCO service connection after a 30 sqm house is completed in the Philippines. First, clearance must be obtained from the local government electrical inspector for an electrical inspection.

Then, fill out the MERALCO application form online or at a MERALCO business center. Documents include barangay clearance, a building permit, an electrical permit, at least two valid IDs, and lot ownership proof or lease contract.

The meter base must be standard size according to MERALCO service entrance requirements, the service entrance cable must be properly sized, and the weatherhead installation must be code compliant.

MERALCO technician will visit the site for inspection and then connection is made which generally takes 3 to 7 working days after application.

MERALCO connection charges include metering equipment deposit approximately 5,000 pesos to 8,000 pesos, transformer share cost for residential varies depending on location, and new connection fee approximately 1,000 pesos to 2,000 pesos.

Materials Quantity And Cost for Small house electrical plan​

Now let us come to the last step where we will discuss which material is going to be used in this complete small house electrical plan and how much it is going to cost, although I have already said that the price of things may be different in different places, you can tell in the comments what is the price in your area.

I have thoughtfully created this Small House Electrical Plan​ so that any ordinary person can build a nice and small house of his own in the Philippines, so go ahead and read the information in the table below and understand how much this Small House Electrical Plan​ is going to cost.

Approximately PHP 125,000 for complete electrical works in a 30 sqm house in the Philippines at 2025 prices. If you exclude AC and water heater cost, the rest comes to approximately PHP 66,000 from rough wiring to fixtures.

Monthly Electricity Bill Estimate 30 sqm House

Electricity is very expensive in the Philippines, so it's important to know your monthly bill estimate. MERALCO assumes a rate of 11.50 pesos per kWh, which is the approximate rate for 2025.

Lighting daily 4 hours use then 7 lights x average 12W x 4 hours x 30 days = 10.08 kWh monthly. This is approximately 116 pesos per month.

If you use AC in bedroom for 8 hours at night then 1.0 HP x 0.746 kW x 8 hours x 30 days = 179 kWh monthly. This is approximately 2,059 pesos per month. AC is the biggest electricity consumer.

Refrigerator single door 7 cu.ft continuously runs then approximately 0.15 kW x 24 hours x 30 days = 108 kWh monthly. This is approximately 1,242 pesos per month.

Rice cooker once daily 45 minutes use then approximately 0.9 kW x 0.75 hours x 30 days = 20.25 kWh monthly. This is approximately 233 pesos per month. Miscellaneous TV, phone chargers, laptop, fans approximately 50 kWh monthly meaning 575 pesos per month.

Estimated Total Monthly Bill approximately 4,200 pesos to 4,800 pesos for a 30 sqm house with normal usage patterns. AC contributes the most; if you use AC less or rely on natural ventilation, the bill reduces dramatically.

Energy Saving Tips

To reduce your electricity bill in the Philippines, here are some practical tips that genuinely work. Always prefer inverter technology ACs over non inverter ACs. Inverter ACs use 30 40 percent less electricity for the same amount of cooling.

There is a higher upfront cost but it is recovered in the long term through monthly bill savings. Use LED lighting throughout the house and avoid any incandescent or fluorescent bulbs. LED conversion can reduce lighting bills by up to 75 percent.

Consider an inverter refrigerator that uses 30 to 40 percent less electricity than a conventional compressor refrigerator. In the Philippines, refrigerators run 24/7, so this saving is significant.

There is too much sunshine in the Philippines for solar panels to be considered. A 2 kWp solar panel system (approximately 100,000 pesos to 150,000 pesos installed cost) can reduce the daytime electricity consumption of a 30 sqm house to practically zero.

ROI (return on investment) is approximately 5 7 years at current MERALCO rates. Avoid phantom load or standby power consumption TVs, chargers, and other devices use electricity even in standby mode. Use power strips with switches that can completely turn off multiple devices with a single switch.
